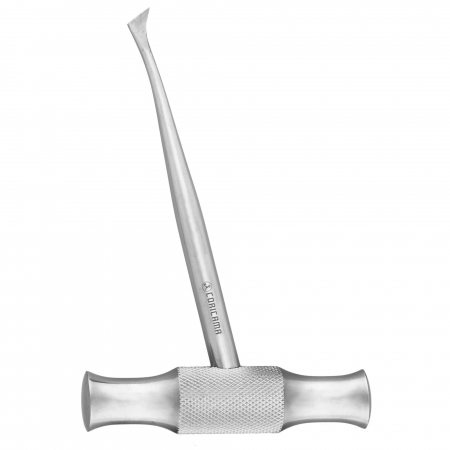

W.Barry [125mm (4.92in)]


€ 50.4

excl. TVA et frais de livraison

Used as a lever for the extraction of a tooth or retained roots. It is pushed in between the gums and the external part of the tooth and used to loosen the tissue surrounding the tooth. The blade transmits a force, generated by rotating the handle around its long axis, to the surface of the tooth or root. This produces the displacement of the tooth away from the point of application where the elevator comes into contact with the tooth. The force may be applied perpendicularly to the tooth, with the elevator placed in the interdental space, or along its long axis. Since considerable force is applied to the tooth, it’s necessary to prevent the elevator from slipping. During its use, the operator’s index finger should therefore be extended over the length of the blade to act as a support on adjacent hard tissues. The curved blade of the elevator is placed on the root surface, thus lying between the tooth and the alveolar bone which acts as a fulcrum around which the elevator is turned. The rotation of the elevator will produce a force which dislocates the tooth and tends to displace it out of its socket. An equal force will also be applied to the fulcrum, so it is important to ensure that this alveolar bone is capable of resisting such a force and that is not an adjacent tooth which may, as a result, become inadvertently loosened or displaced. Elevators must be used with caution when extracting teeth to avoid generating excessive and potentially damaging forces.
Pennant flag shaped. The use of a sharp-ended (east-west) elevator to remove a root of a multirooted tooth following extraction of an adjacent one is valuable. The sharp end is introduced to the depth of the socket generated by the removal of the first root and is used to engage the inter-radicular bone and remaining root. A rotational movement (wheel-and-axle rotation) is produced as the handle is rotated, allowing the root to be removed. The handle is in right angle to the shank and for this reason the elevator is very powerful and force generated is sufficient to fracture the mandible: it is recommended to use this elevator with great care to avoid fracture of the jaw.

  • Nom Instrument: W.Barry [125mm (4.92in)]
  • Pointe: Gauche
  • Matériel Pointe: Acier Inoxydable
  • Manche: Crossbar/T-Handle
  • Matériel Manche: Acier Inoxydable
